The circuit is simple ,no external power supply is required and the operation is reliable .
Good transient characteristics, real waveform transmission ,strong overload capacity ,can withstand 20-60times the rated current transient impact without saturation ;
Various installation methods, optional PCB installation and bolt fixing methods.
Various shape structures are available .

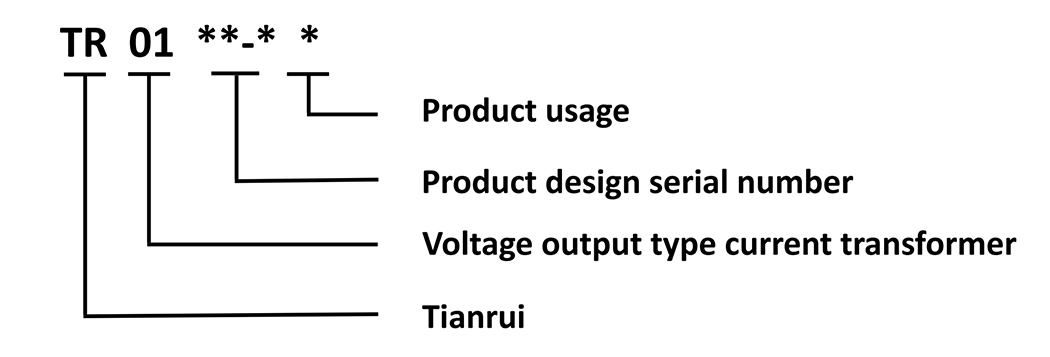

| Electrical performance parameters |
Operation Temperature | -25℃～+55℃/-40℃～+85℃ optional | Relative Humidity | ≤90%hPa |
|---|---|---|---|---|
| Internal Insulation | Epoxy resin | Insulation resistance | ≥500 MΩ/500V DC | |
| Power Frequency Withstand Voltage | 3000V AC/1min | Withstand Impulse Voltage | 5000V（1.2/50μsStandard Lightning Wave） | |
| Rated Load | ＞50kΩ | Operation Frequency | 50～400Hz | |
| Accuracy Class | According to（IEC 61869-2）or （GB 20840.2-2014） the efinition of the error limit of the current transformer for medium protection； |
Environmental Friendly | According to the requirement of RoHS; | |
| Transient Characteristics | According to DL/T873-2004,DL/T663-1999 |
| Physical Pic | Type | Rated Input Iin | Rated Overload Input/Output(AC) |
Error Limit | Transient Characteristic | Power Consumption（VA) | Dimensions（mm） |
|---|---|---|---|---|---|---|---|
 |
TR01201-2G | 1A,5A | 20A/3.53V,7.07V 40A/3.53V,7.07V 100A/3.53V,7.07V 200A/3.53V ,7.07V |
5%～200 %within rated current input range ：0.5 class; within 2～20/40times rated current input range1.0 class； |
Tp=100ms,offset factor cosθ=1.0， |

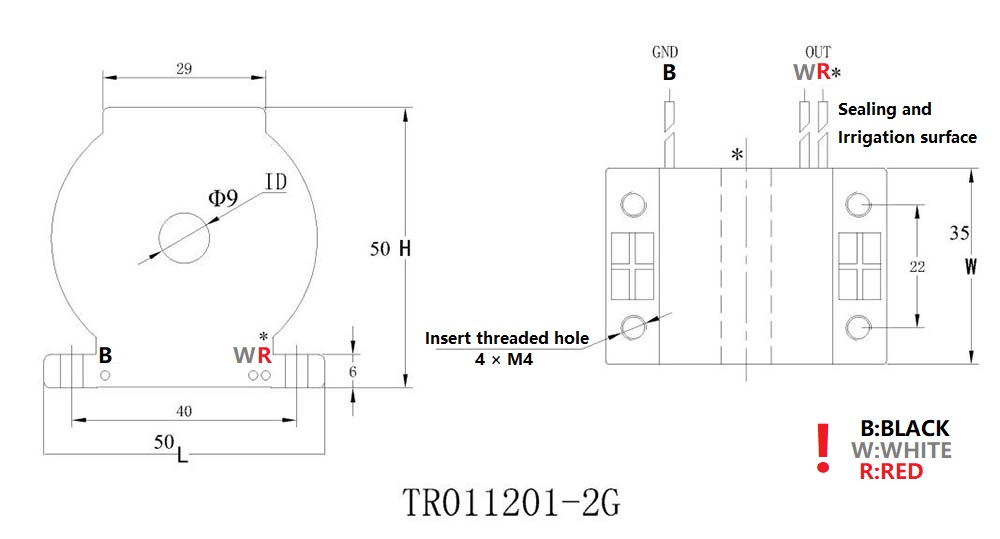

≤0.5 |  L-H-W-ID 50-35-50-9 |
 |
TR01153-2G | 1A,5A | 20A/3.53V,7.07V 40A/3.53V,7.07V 100A/3.53V,7.07V 200A/3.53V,7.07V |
≤0.5 |  OD-W-H 45-51-38 |
||
 |
TR0162-4GJ | 1A,5A | 20A/3.53V,7.07V 40A/3.53V,7.07V 100A/3.53V,7.07V 200A/3.53V,7.07V |

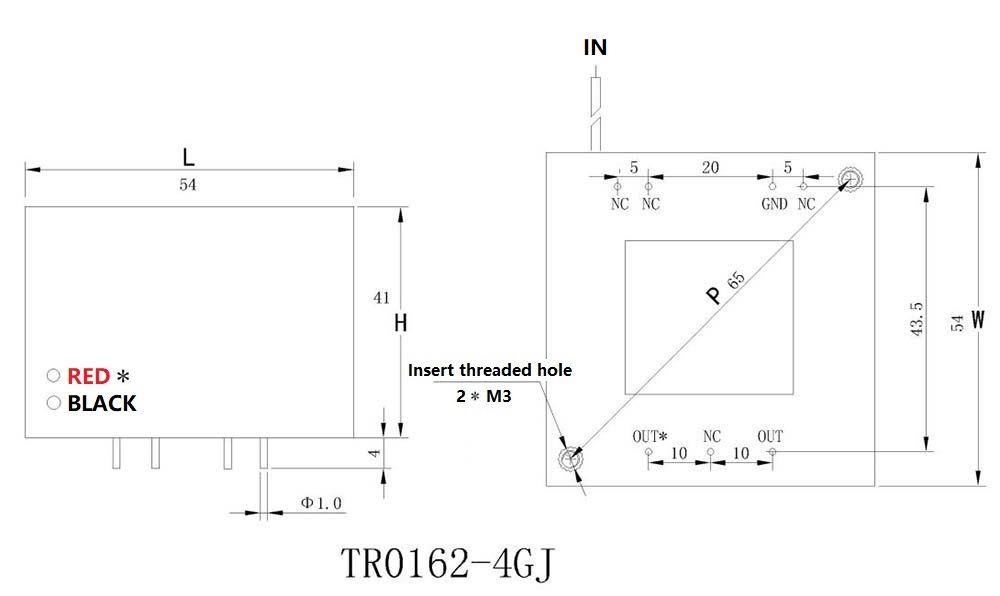

≤0.5 |  L-W-H 54-54-41 |
Remarks：Customization available according to system requirements .
1. Periodic component：3times rated current（In），Tp=100ms,offset factorcosθ=1.0，waveform after 50 tests ：
2. Periodic component：20times rated（In），Tp=100ms,offset factorcosθ=1.0，waveform after 50 tests：
