Product Overview

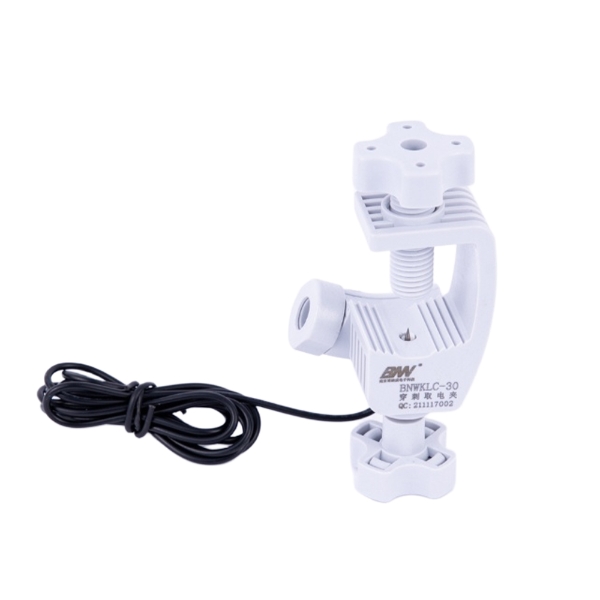

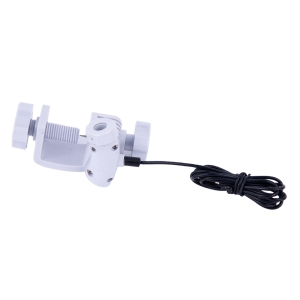

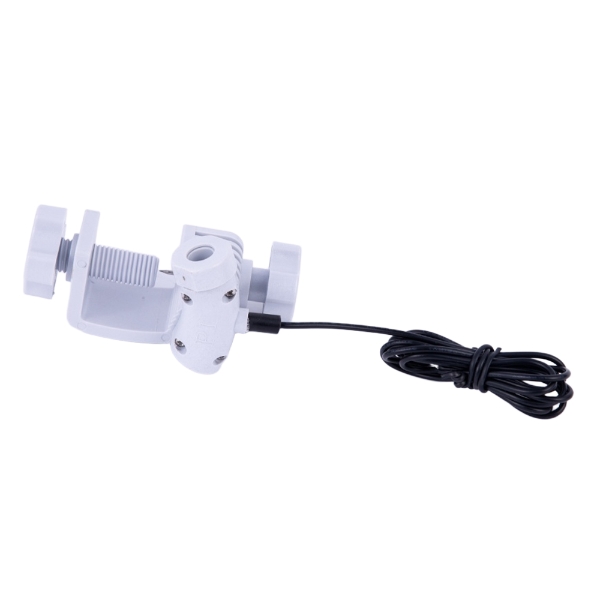

TRKLC-30J split-core puncture clip is mainly used for low-voltage 0.66/0.72kV transmission cable, which is convenient for installation and removal under live condition; live puncture cable leads the phase line voltage signal to the monitoring meter through the lead wire. Can be directly fixed on cables with a diameter of 5mm to 30mm
Product Features


Split-core structure, easy to install on site and easy to operate;

Quick and easy installation or removal without disconnecting the primary cable under test;

Performance


Working

Environment

 Ambient Temperature -40℃～+75℃ Storage Temperature -45℃～85℃
Relative Humidity ≤90% Barometric Conditions 66kPa~110kPa

Electric

Parameters

 Equipment Maximum Voltage 0.66/0.72kV Puncture Depth <10mm
Insulation Resistance ≥1000MΩ/500V DC Dielectric Strength 1mA/6kV 50Hz 1min

Mechanical

Parameters

 Primary Through Hole 1 Turn Measured Cable Diameter ＜Φ30mm
Pinout AGG-10kV-DC Silicone Rubber Wire Lead Out Length 1000mm
Shell PC Flame Retardant Grade 94-V0 Weight About 148g

Structure

Requirements

 The shell is made of flame-retardant and environmentally friendly materials, with good sealing performance and dust-proof and moisture-proof functions;
Protection class meets IP66
Shape and Installation Dimensions

Installation Precautions


The transformer must be operated with power on, and insulating gloves must be worn, and the hands must not directly touch the lead wire core;

Do not use if the output leads are damaged. Our company is not responsible for any safety problems caused by improper operation;
