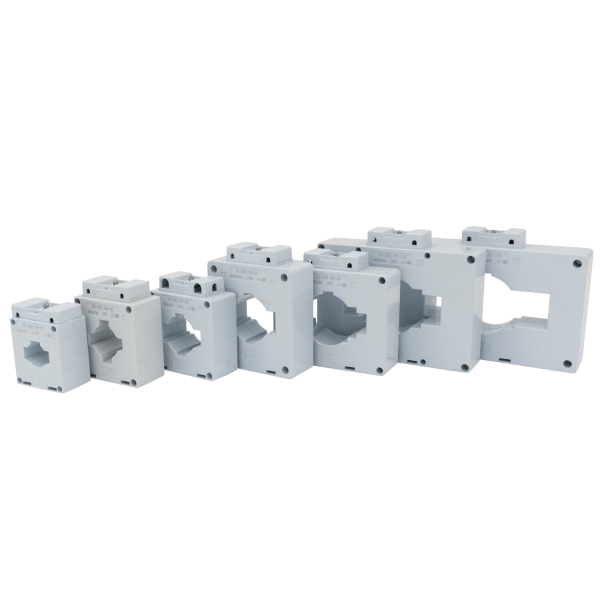

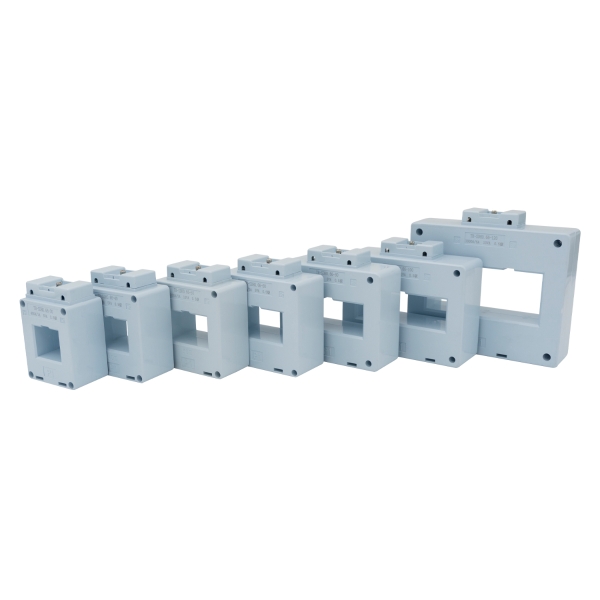

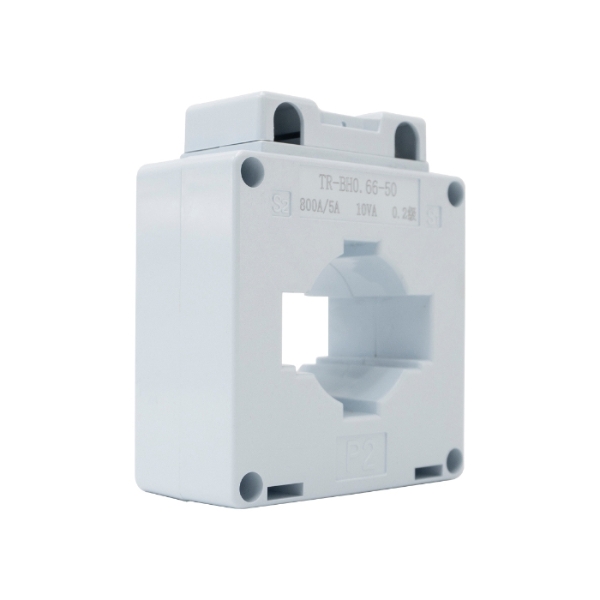

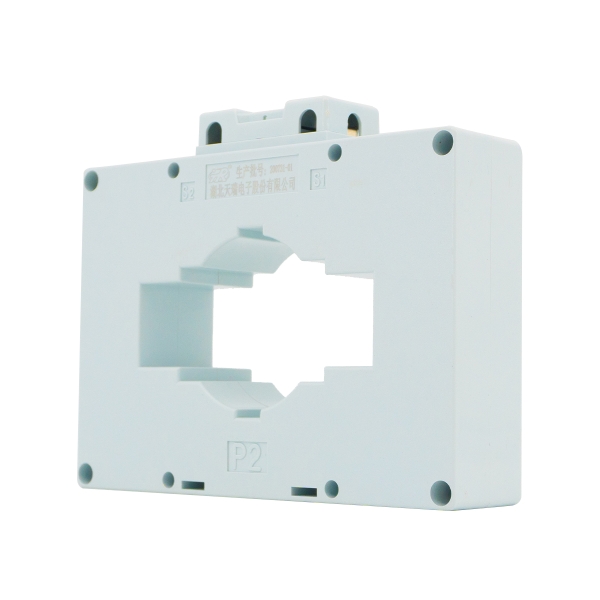

BH/SDH Busbar Type Series Current Transformer
BH/SDH Busbar Type Series Current Transformer BH/SDH Busbar Type Series Current Transformer BH/SDH Busbar Type Series Current Transformer BH/SDH Busbar Type Series Current Transformer BH/SDH Busbar Type Series Current Transformer BH/SDH Busbar Type Series Current Transformer

BH/SDH Busbar Type Series Current Transformer

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry
Applications and Definition

TR-BH and TR-SDH series current transformers are used in the protection test of GCS low-voltage pull-out switchgear and domino combined switchgear as well as high-power electrical equipment. They are suitable for the measurement and protection of electric energy in ac circuits with rated voltage of 0.66kV blow and rated frequency of 50Hz and 60Hz. This type of transformer has the characteristics of low price and good quality, high performance index, flexible installation mode and strong applicability, etc., and can also be customized according to user requirements.

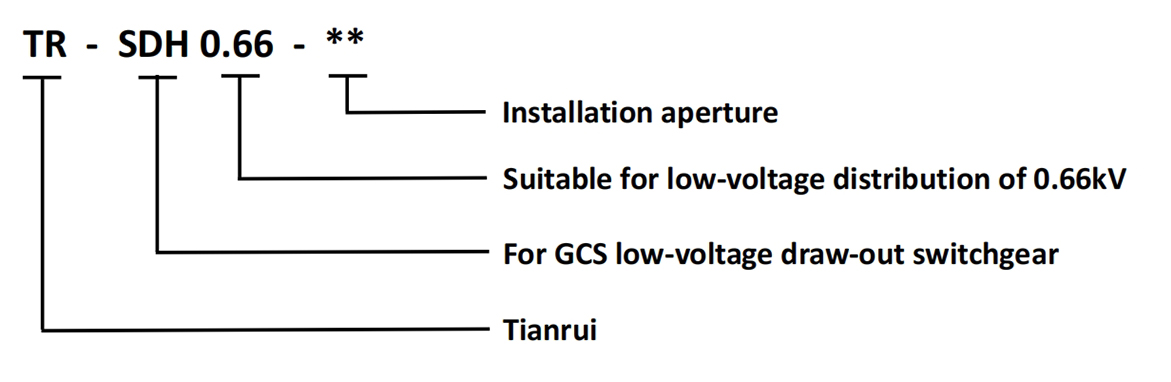

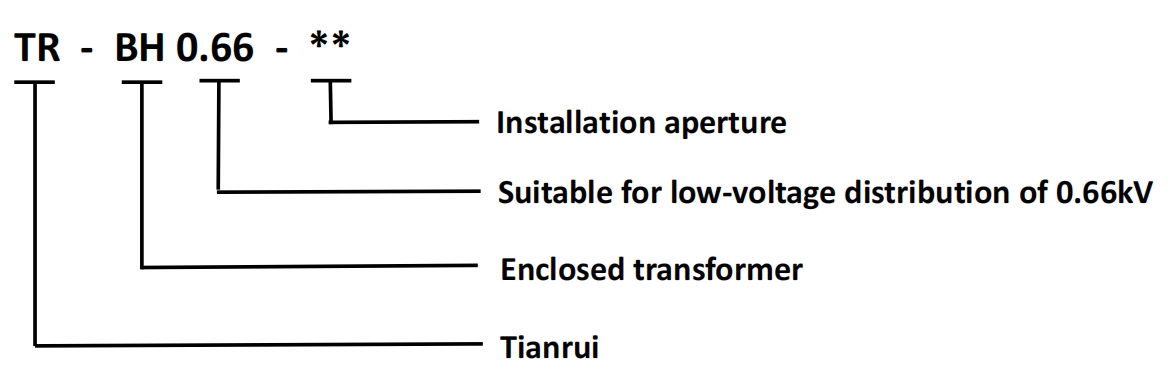

Product Model NO. Naming

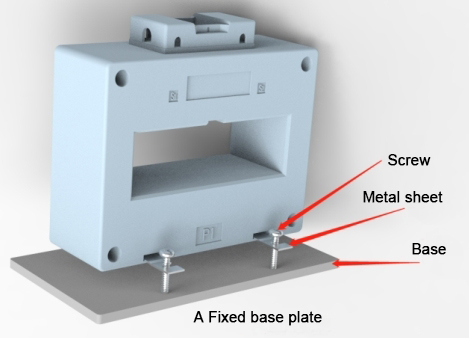

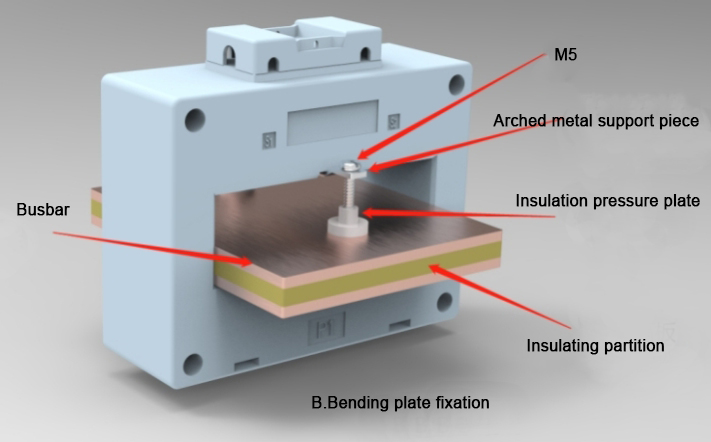

Product Installation Diagram


All series products are composed of the above two installation methods A and B, and the installation components are shipped by default.

Specifications

Physical Products Current Ratio Rated Secondary Load（VA） Number of Turns Through Core Product Specifications
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

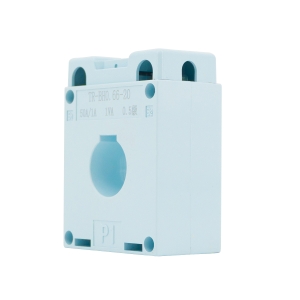

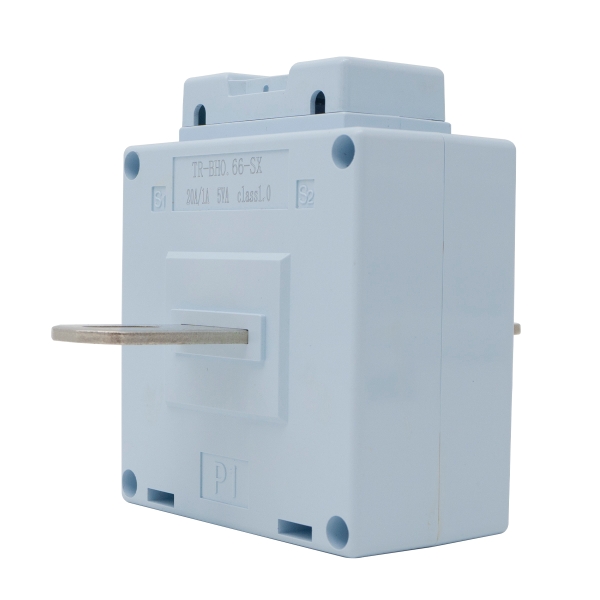

            TR-BH0.66-SX		 150/5 5 2.5 2.5 -- -- 1 Updating
200/5 5 2.5 2.5 -- -- 1
250/5 5 2.5 2.5 -- -- 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1

            TR-BH0.66-20		 200/5 5 3.7 2.5 2.5 2.5 1 Updating
250/5 5 5 5 5 5 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1

             TR-BH0.66-30		 200/5 5 3.7 -- -- -- 1 PDF文档
250/5 5 3.7 -- -- -- 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
Physical Products Current Ratio Rated Secondary Load（VA） Number of Turns Through Core Product Specifications
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

TR-BH0.66-40		 150/5 5 2.5 2.5 -- -- 1 PDF文档
200/5 5 2.5 2.5 -- -- 1
250/5 5 2.5 2.5 -- -- 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1

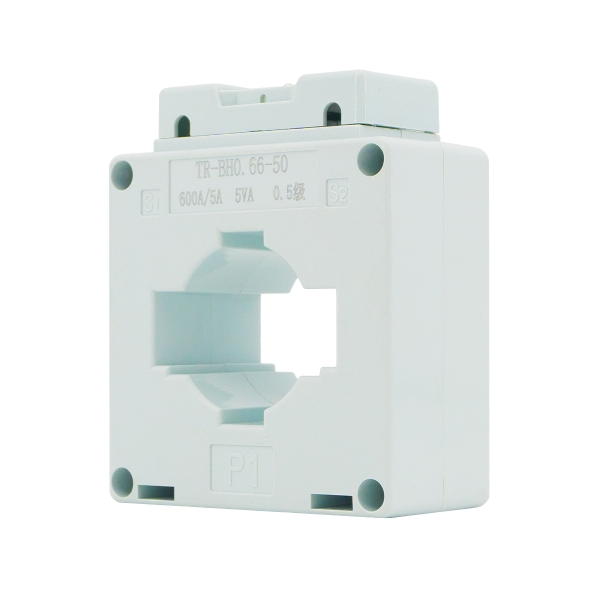

TR-BH0.66-50		 200/5 5 3.7 2.5 2.5 2.5 1 PDF文档
250/5 5 5 5 5 5 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1

TR-BH0.66-60		 200/5 5 3.7 -- -- -- 1 PDF文档
250/5 5 3.7 -- -- -- 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
Physical Products Current Ratio Rated Secondary Load（VA） Number of Turns Through Core Product Specifications
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

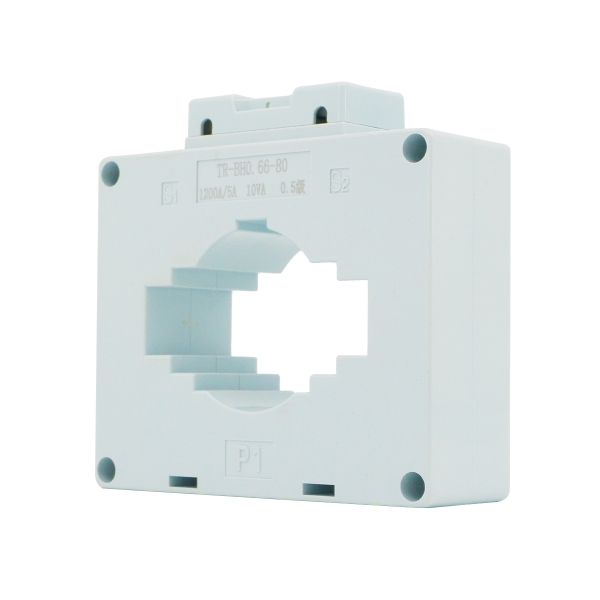

TR-BH0.66-80		 300/5 5 5 -- -- -- 1 Updating
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1

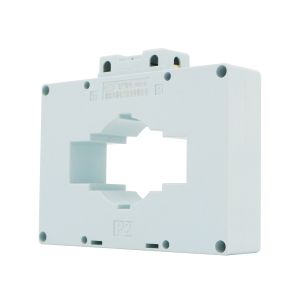

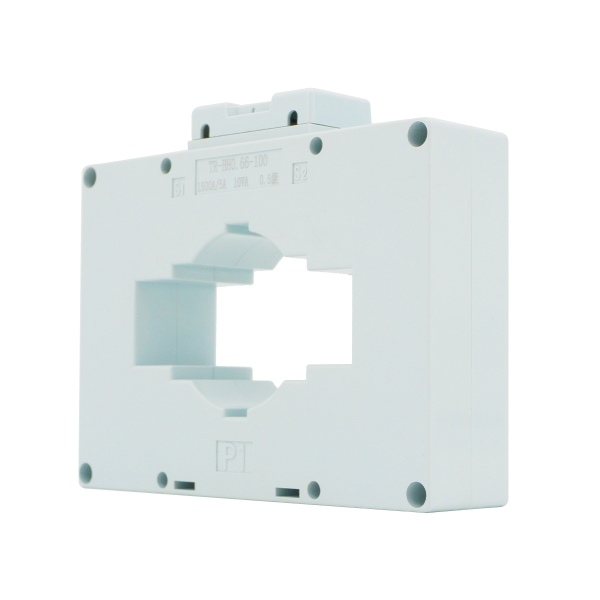

TR-BH0.66-100		 600/5 5 5 5 5 5 1 PDF文档
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1

TR-BH0.66-120		 800/5 10 10 -- -- -- 1 Updating
1000/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1

TR-SDH0.66-30		 150/5 2.5 -- -- -- -- 1 PDF文档
200/5 2.5 2 -- -- -- 1
250/5 5 5 2.5 2.5 2.5 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
Physical Products Current Ratio Rated Secondary Load（VA） Number of Turns Through Core Product Specifications
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

TR-SDH0.66-40		 150/5 5 1.5 -- -- -- 1 PDF文档
200/5 5 2.5 -- -- -- 1
250/5 5 5 5 5 5 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1

TR-SDH0.66-50		 200/5 5 5 2.5 2.5 2.5 1 Updating
250/5 5 5 5 5 5 1
300/5 5 5 5 5 5 1
400/5 5 5 5 5 5 1
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1

TR-SDH0.66-60		 400/5 5 5 5 5 5 1 Updating
500/5 5 5 5 5 5 1
600/5 5 5 5 5 5 1
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1

TR-SDH0.66-80		 600/5 5 5 5 5 5 1 PDF文档
750/5 10 10 10 10 10 1
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
Physical Products Current Ratio Rated Secondary Load（VA） Number of Turns Through Core Outline and Installation Dimensions
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

TR-SDH0.66-100		 750/5 10 10 10 10 10 1 Updating
800/5 10 10 10 10 10 1
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1

TR-SDH0.66-120		 1000/5 10 10 10 10 10 1 PDF文档
1200/5 10 10 10 10 10 1
1500/5 20 20 20 20 20 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1

TR-SDH0.66-130		 800/5 10 10 -- -- -- 1 Updating
1000/5 10 10 10 10 10 1
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1
5000/5 30 30 30 30 30 1

TR-SDH0.66-150		 1000/5 10 10 10 10 10 1 Updating
1200/5 10 10 10 10 10 1
1500/5 10 10 10 10 10 1
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1
5000/5 30 30 30 30 30 1
6000/5 30 30 30 30 30 1
Physical Products Current Ratio  Rated Secondary Load（VA） Number of Turns Through Core Product Specifications
1.0 Class 0.5 Class 0.5S Class 0.2 Class 0.2S Class

TR-SDH0.66-180		 1500/5 10 10 10 10 10 1 Updating
2000/5 20 20 20 20 20 1
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1
5000/5 30 30 30 30 30 1
6000/5 30 30 30 30 30 1

TR-SDH0.66-200		 2000/5 20 20 20 20 20 1 Updating
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1

4000/5

 30 30 30 30 30 1
5000/5 30 30 30 30 30 1
6000/5 30 30 30 30 30 1

TR-SDH0.66-220		 2000/5 20 20 20 20 20 1 Updating
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1
5000/5 30 30 30 30 30 1
6000/5 30 30 30 30 30 1

TR-SDH0.66-260		 2000/5 20 20 20 20 20 1 Updating
2500/5 20 20 20 20 20 1
3000/5 20 20 20 20 20 1
4000/5 30 30 30 30 30 1
5000/5 30 30 30 30 30 1
6000/5 30 30 30 30 30 1

We are a manufacturer has export qualification and experience.

instrument type at least 100pcs ;others by 1 -5 pcs;

T/T;L/C;

Instrument transformer 20 thousand pcs ;current transformer 12 thousand pcs ;voltage transformer 11 thousand pcs.

We have a R&D team for new product design. Successful cases and in continued cooperation. Discussion among both sides ➡general specification ensure➡structure drawing ➡original sample ➡electrical

Standard Carton Export fumigatin-free tray Tray Film Edge fixing strip Vacuum packaging acceptable Customize size acceptable
1
2
3
CE
RoHS
REACH
REACH
IATF16949
Thank you for your message. We will contact you as soon as possible!

Contact Us

Tel：+86-25-84152563

Fax：+86-25-52146294

Email：export@hbtianrui.com

Address：Head Office: No.8 Chuangye Avenue, Economic Development Zone, Tianmen City, Hubei Province, China (Zip Code: 431700) Nanjing Office: Room 201-301, Building K10,15 Wanshou Road,Nanjing Area, China (Jiangsu) Pilot Free Trade Zone,Jiangsu Province,China (Zip Code:211899)
