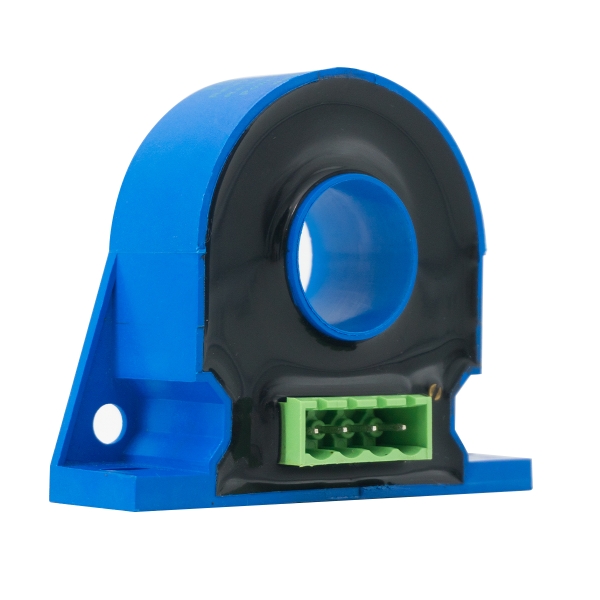

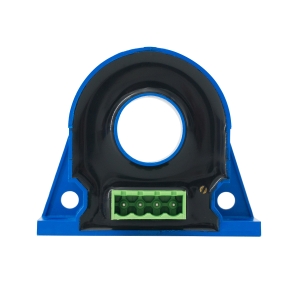

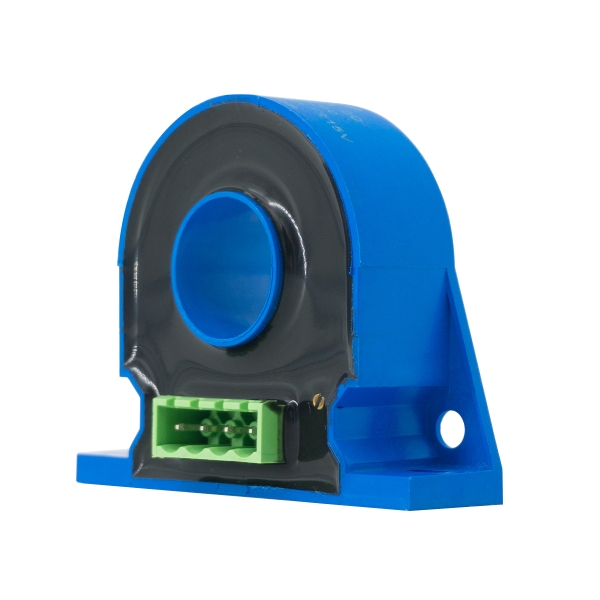

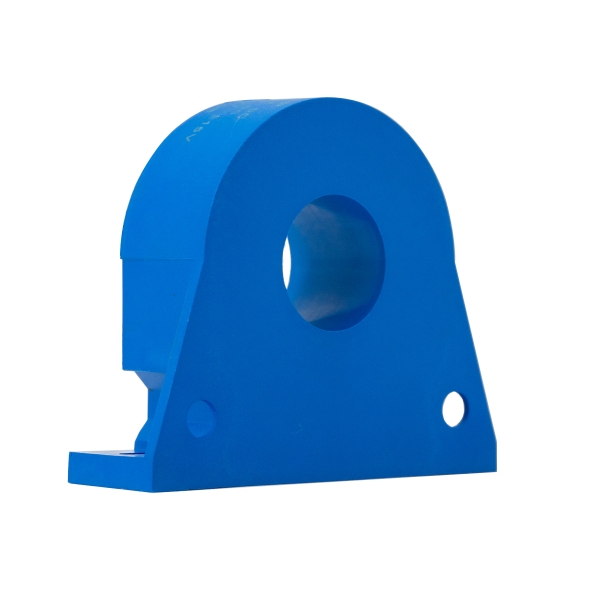

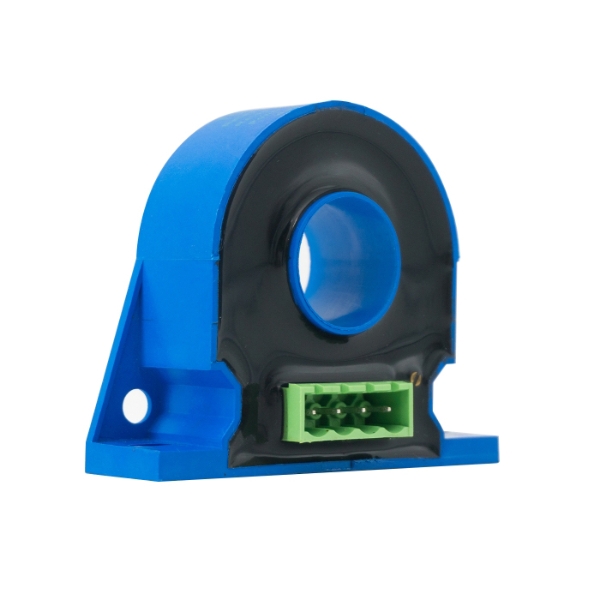

Product Overview

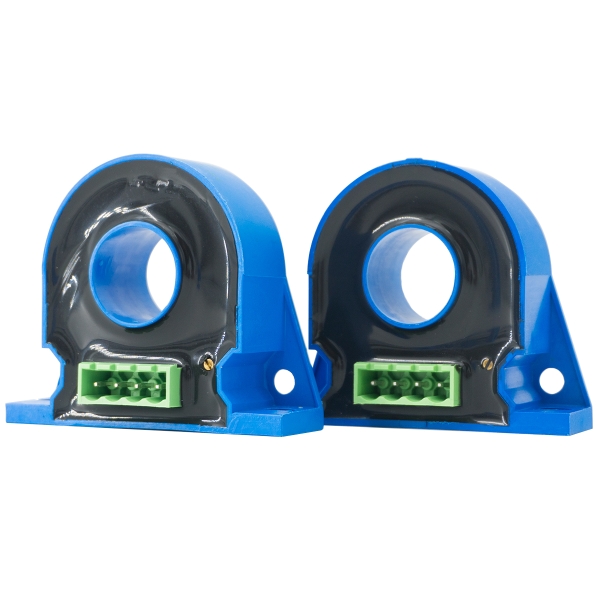

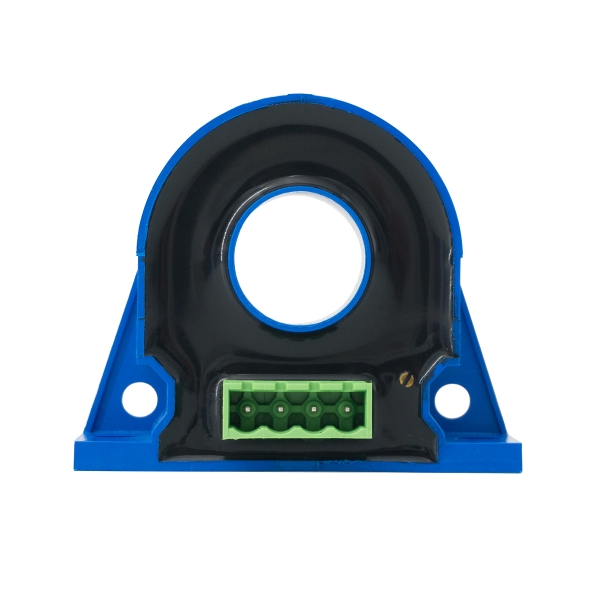

A new type of current sensor developed by applying the principle of magnetic modulation. The primary current is compensated by the current generated by the internal oscillator to achieve the balance of the magnetic field. At this time, the secondary voltage can accurately reflect the primary current.
Product Features


Small current measurement performance is stable

Excellent accuracy, good linearity

Wide measuring range and strong overload capacity

Perforated structure, no insertion loss

Scope of Application


The signal system

Line detection

Leakage Monitoring System

Current difference measurement

Technical Parameter


Specification 10mA/5V 50mA/5V 200mA/5V Unit
IPN Primary Rated Input Current (DC) 10 50 200 mA
IP Primary Current Measurement Range 0～15 0～75 0～300 mA
VSN Secondary Rated Output Voltage(DC) 5 V
VC The Power Supply Voltage ±12～15(±5%) V
IC Current Consumption ＜30 mA
Vd Insulation Voltage Between primary and secondary circuits:2.5kV/50Hz/1min
εL Linearity ＜1 %FS
X Accuracy TA=25℃:≤±0.5 %
V0 Offset Voltage TA=25℃:≤±50 mV
VOT Offset Voltage Temperature Drift Ip =0,TA =-40～+80℃:≤±1.5 mV/℃
Tr Response Time ≤120 ms
TA Working Temperature -40～+80 ℃
TS Storage Temperature -45～+85 ℃
RL Load Resistance TA=25℃:≥10 kΩ

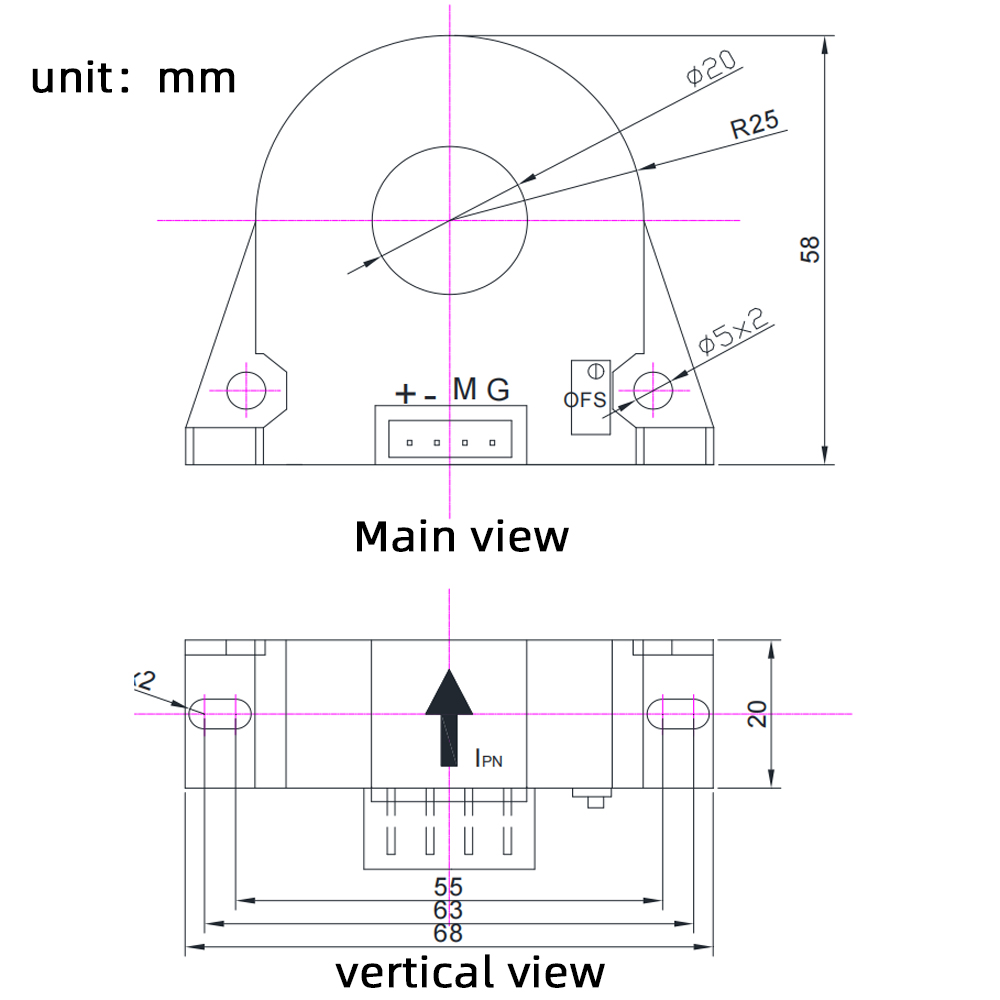

Shape and Installation Dimensions

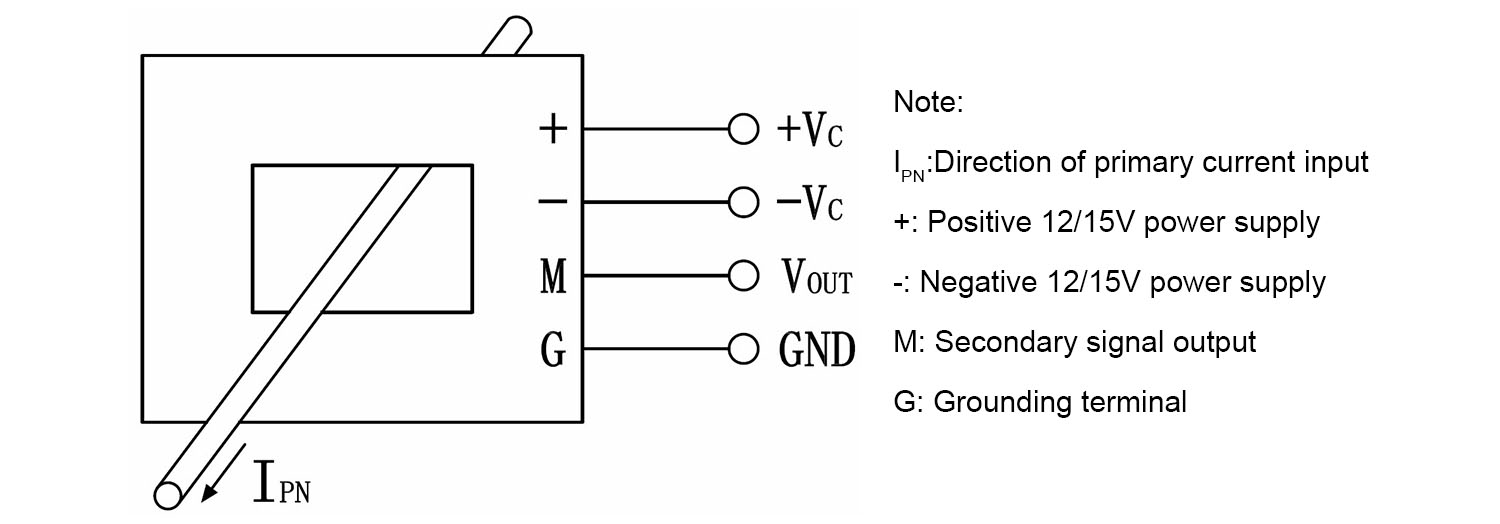

Circuit Link Diagram

Installation Precautions


The sensor should be wired correctly, otherwise it may damage the internal components of the sensor
