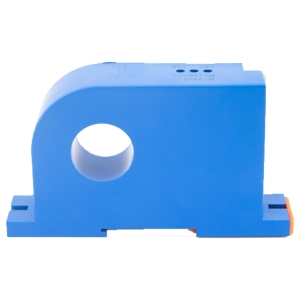

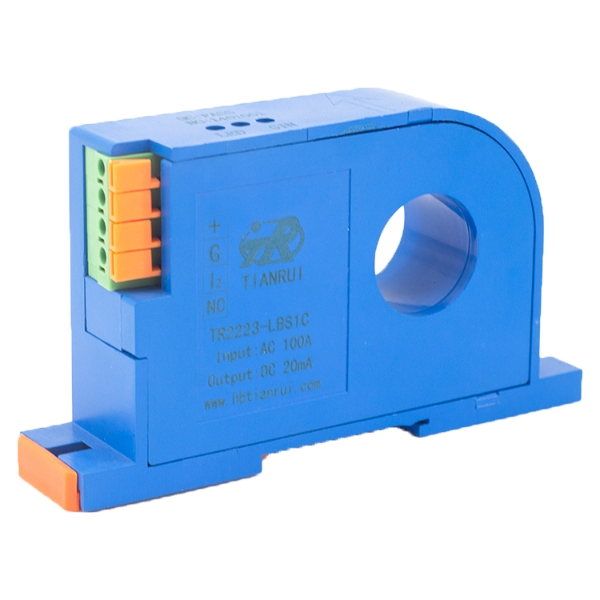

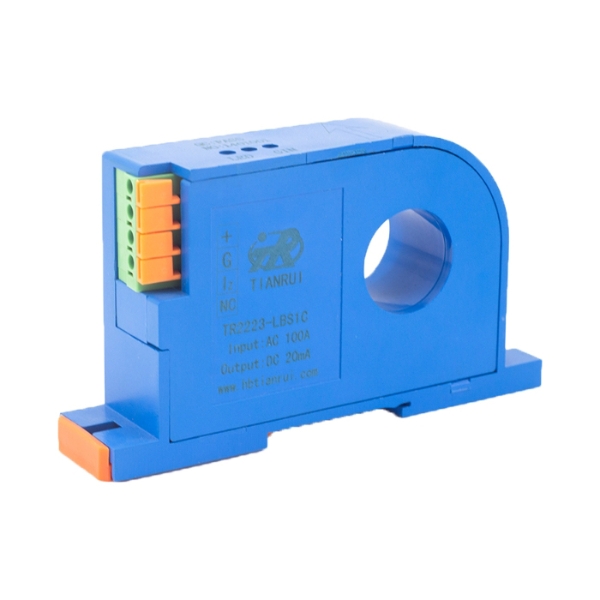

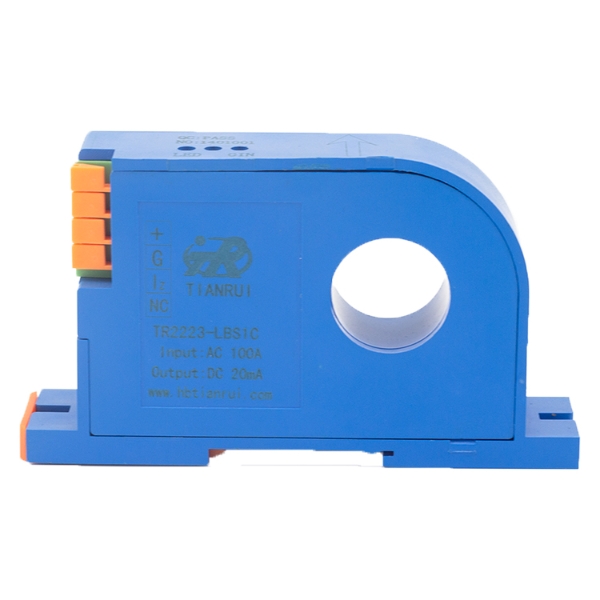

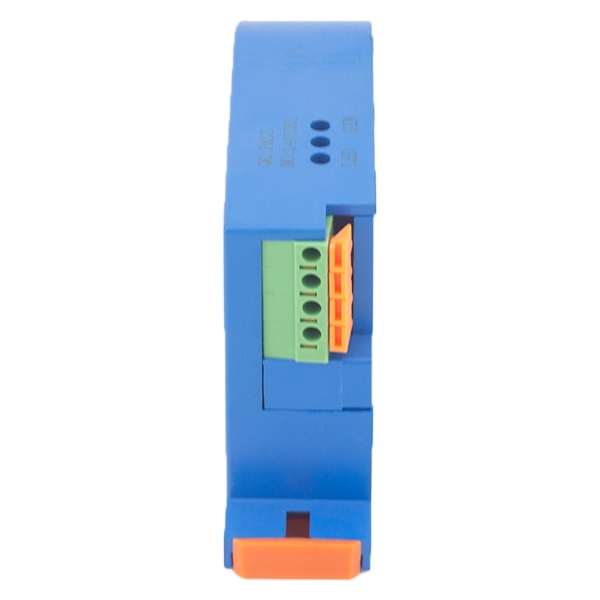

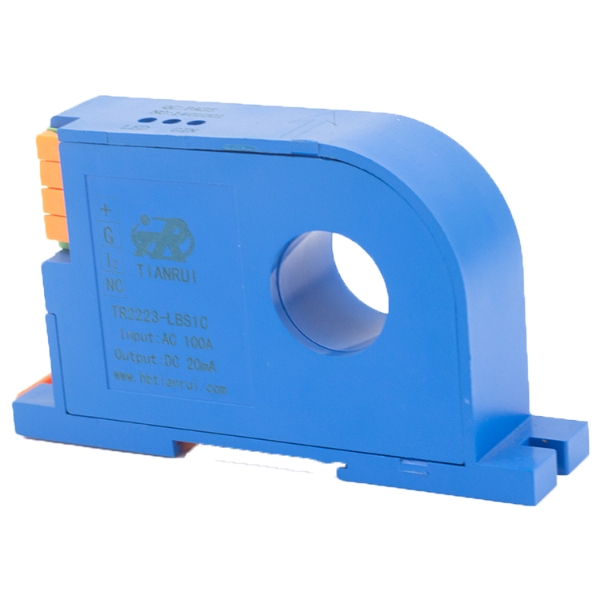

223-LBCD Quantity of Electric Charge Isolation Transmitter
223-LBCD Quantity of Electric Charge Isolation Transmitter 223-LBCD Quantity of Electric Charge Isolation Transmitter 223-LBCD Quantity of Electric Charge Isolation Transmitter 223-LBCD Quantity of Electric Charge Isolation Transmitter 223-LBCD Quantity of Electric Charge Isolation Transmitter 223-LBCD Quantity of Electric Charge Isolation Transmitter

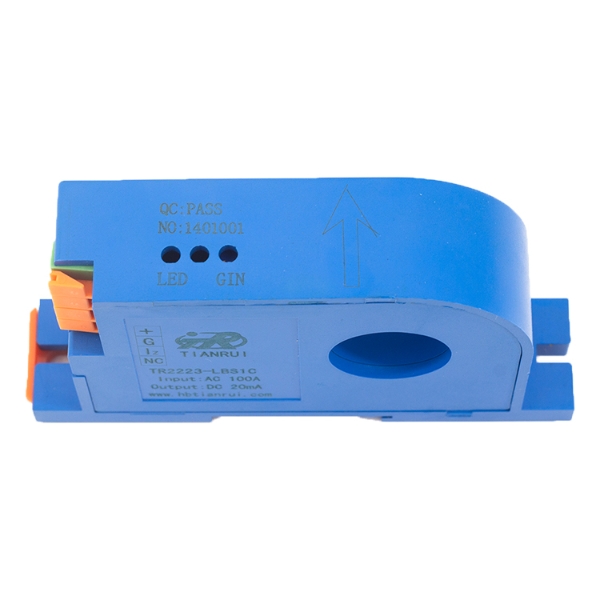

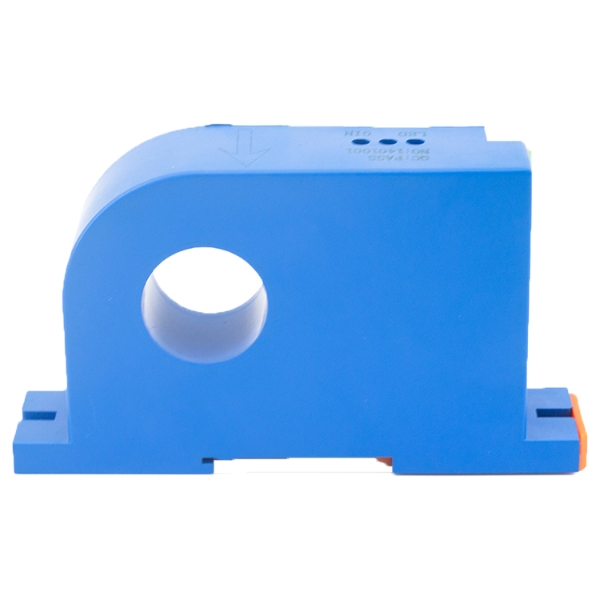

223-LBCD Quantity of Electric Charge Isolation Transmitter

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry
Product Overview

The transmitter can perform isolated measurement and transformation of high-current, high-voltage, power, frequency, phase angle, electroplating and other parameters in the field. Various A/D converters and computer systems are directly connected to form a highly reliable industrial inspection and control system.
Product Features


Excellent accuracy, good linearity

Strong resistance to external interference, high common mode rejection ratio

Low temperature drift, low power consumption, wide frequency band

Perforated structure, no insertion loss

Scope of Application


Automatic Control

Measuring Meter

Railway Monitoring System

Station Control System

Technical Parameter


Specification AC30A/DC20mA AC50A/DC20mA AC100A/DC20mA Unit
IPN Primary Rated Input Current(AC) 30 50 100 A
IP Primary Current Measurement Range(AC) 0～45 0～75 0～150 A
VSN Secondary Side Rated Output Current DC 20 mA
VC The Power Supply Voltage +5/12/15/24 V
IC Current Consumption ＜10+Is mA
Vd Insulation Voltage Between primary and secondary circuits:2.5kV/50Hz/1min
εL Linearity ＜0.2 %FS
X Accuracy TA=25℃:≤±0.5 %
I0 Offset Voltage TA=25℃:≤±50 μA
IOT Offset Current Temperature Drift VP=0 TA=-25～+75℃时:≤±0.01 mA/℃
Tr Response Time ≤300 ms
f Bandwidth -1dB 25～5k Hz
TA Working Temperature -25～+75 ℃
TS Storage Temperature -45～+85 ℃
RL Load Resistance TA =25℃:≤300 Ω

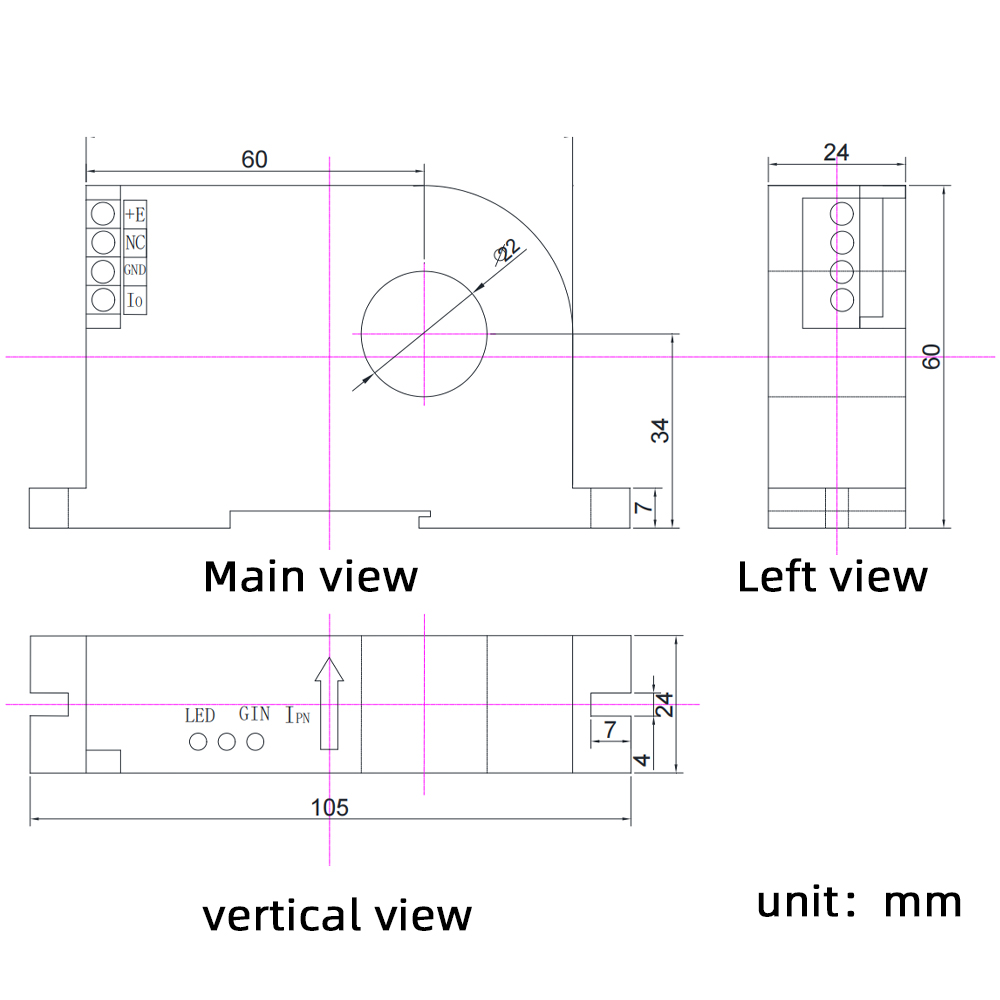

Shape and Installation Dimensions

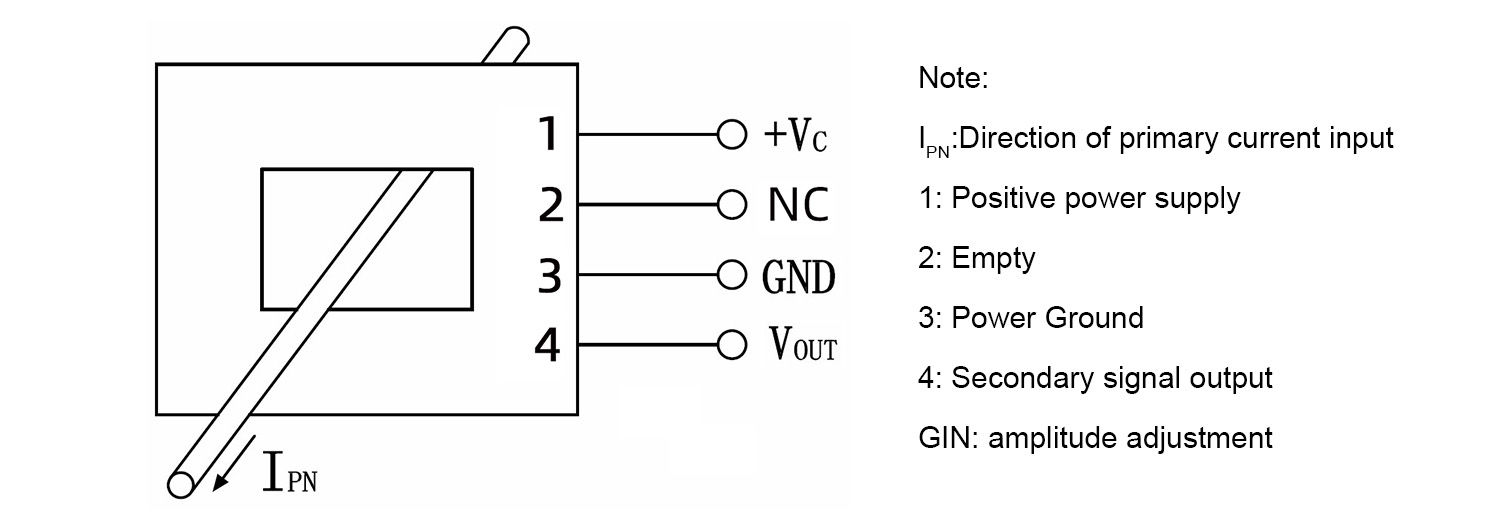

Circuit Link Diagram

Installation Precautions


The sensor should be wired correctly, otherwise it may damage the internal components of the sensor

Card rail installation

We are a manufacturer has export qualification and experience.

instrument type at least 100pcs ;others by 1 -5 pcs;

T/T;L/C;

Instrument transformer 20 thousand pcs ;current transformer 12 thousand pcs ;voltage transformer 11 thousand pcs.

We have a R&D team for new product design. Successful cases and in continued cooperation. Discussion among both sides ➡general specification ensure➡structure drawing ➡original sample ➡electrical

Standard Carton Export fumigatin-free tray Tray Film Edge fixing strip Vacuum packaging acceptable Customize size acceptable
